Trimos

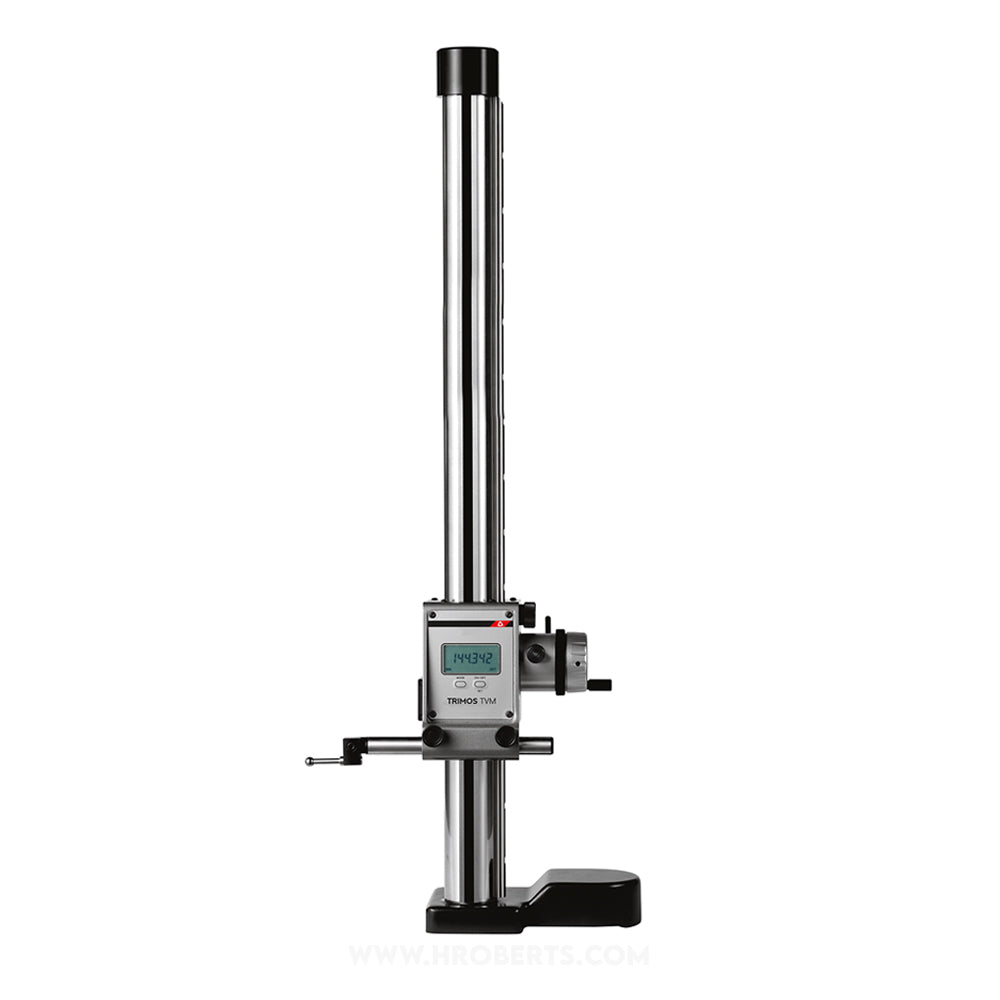

20-2310CI TVM604 Digital Workshop Height Gauge 0-620mm / 0-24" Cast Iron Base
SKU:Code: 20-2310CI
This item is no longer available or has been discontinued.
TVM scribing and measuring height gauge with cast iron base
Need more information? Ask a question or contact us.
Specification
Specification
- type Measuring
- range 0-620mm / 0-24"
- display type Digital
- resolution 0.001mm / 0.00005"
- accuracy 0.03μm
- data output Yes
- measuring force 3N
- data storage No
- max permissible errors 0.03μm
- repeatability 5μm
- frontal squareness deviation 0.03μm
- power supply 240v
- mass 10kg
- stored data No
- stored programs No
- battery Yes
- autonomy Up to 12 hours
- drive method Manual
- power supply 240v
- suspension No
- multiple references No
- programmable No
- tolerances No
- preset function Yes
- repeatability on bore 5μm
- repeatability on plane 5μm
- fine adjustment Standard
- dust cover Optional
- setting master No
- temperature compensation No
- min max delta No
- statistics No
description
description
The TVM instruments are perfect for height measurements and scribing work and reliable in all kinds of workshop conditions. The result of an unique, compact design of the instrument is great mobility and extreme stability.
