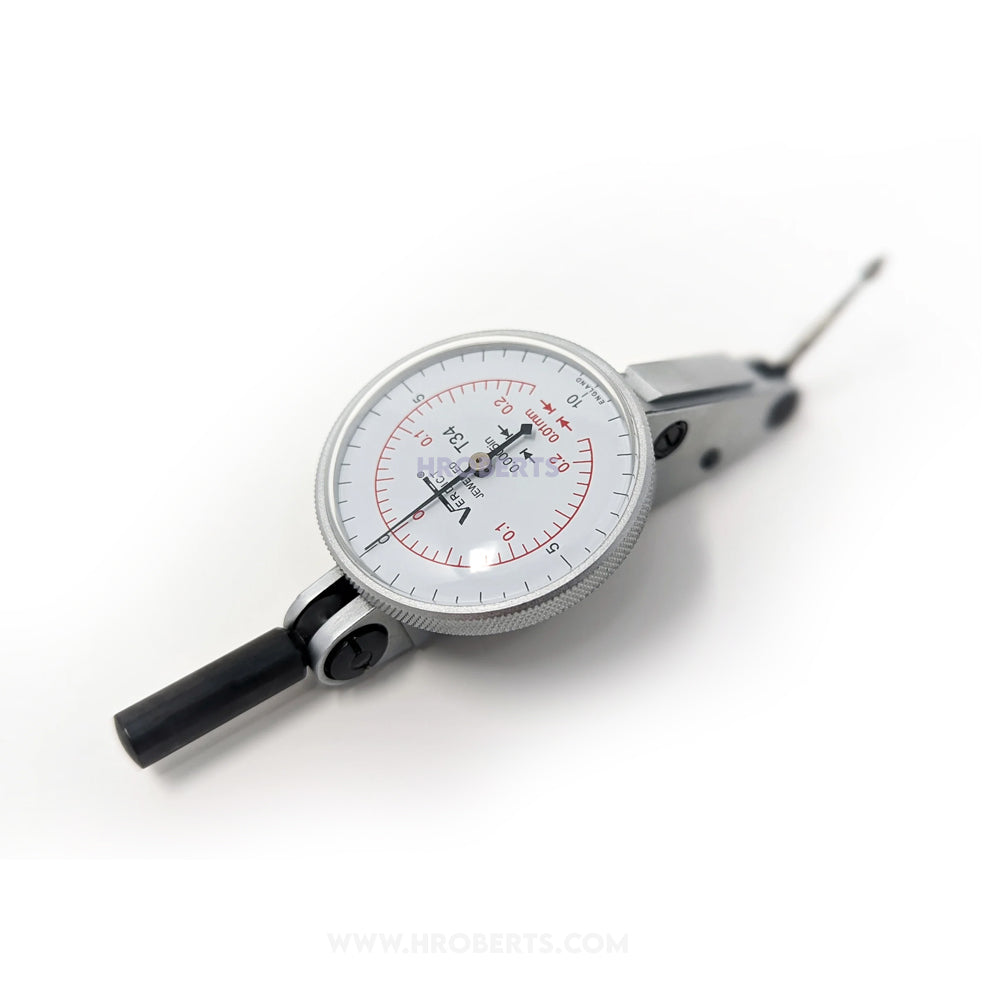

01-3034 T34 Metrinch Lever Dial Indicator Horizontal Type, Graduation 0.0005" / 0.01mm, Range 0.020" / 0.44mm, Scale 0-10-0 / 0.22-0-0.22, Stylus Length 0.811"/ 20.60mm, Bezel Diameter 1.3/8" / 36mm
SKU:Code: Verdict-T34M
Sale
Sold out
Regular price
£114.96
Save: 20%
Sold out
Sale price
£114.96
Regular price
£143.70
Excl. VAT
Worm mechanism. Clamping facilities by means of dovetail or end spigot. Dial rotates for zero setting. Automatic reversal movement. Jewelled mechanism. Stylus swivels through an arc of 180 degrees. Unidirectional hand travel. Lever pivots are mounted in long-life ball bearings. Fitted with 1/4 inch diameter spigot. Swivel spigot standard on all models
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.020" / 0.44mm
- display type Non-Digital
- graduations 0.0005" / 0.01mm
- bezel dia 1.3/8" / 36mm
- measuring units Metric / Imperial
- scale 0-10-0 / 0.22-0-0.22
- contact point thread 10BA
description
description
Our T34 Metrinch DTI is the British-engineered solution to the measuring challenges when working with both metric and imperial units. The T34 Metrinch DTI has a clear and easy-to-use display that gives instantly accurate measurements in both metric and imperial units without swapping tools or machine downtime. Risks of error from conversion tables and repositioning are no longer an issue. The T34 is just like the original Metrinch DTI, except with a 1mm longer stylus.
