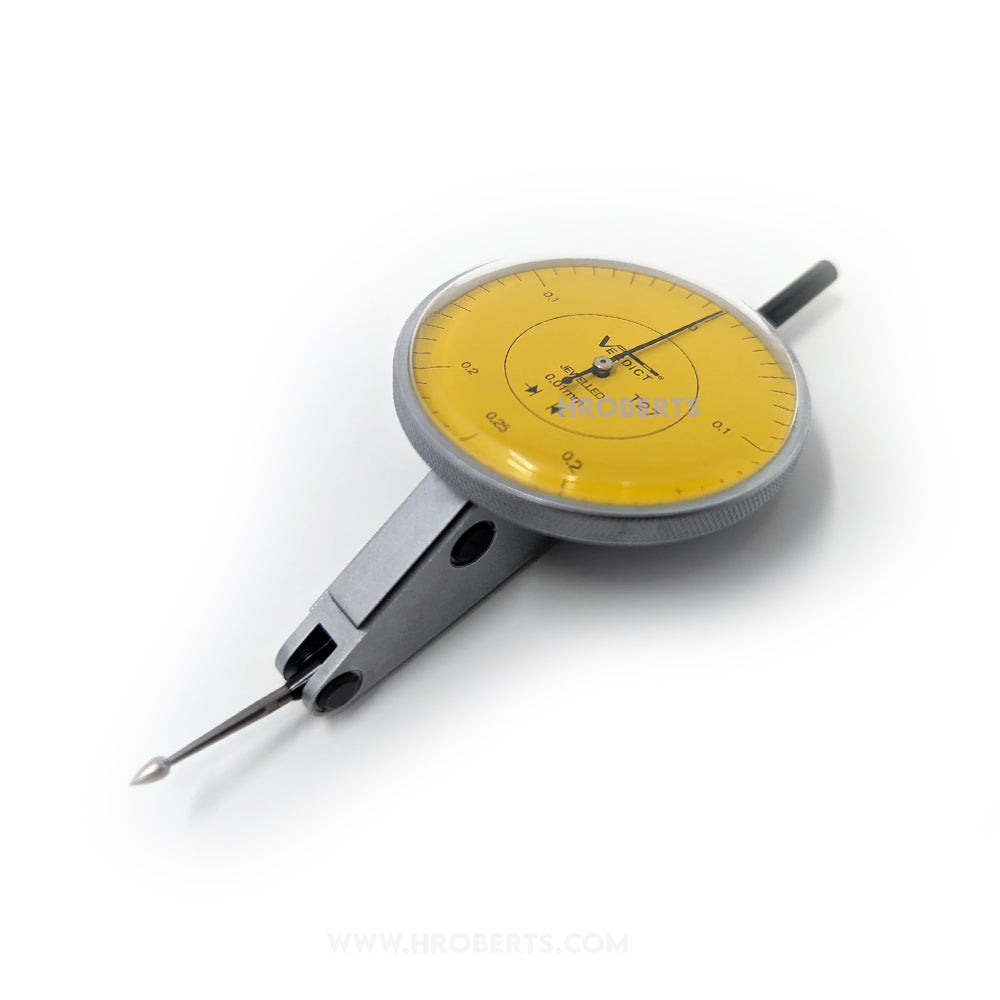

01-3127 T27 Metric Lever Dial Indicator Horizontal Type, Graduation 0.01mm, Range 0.5mm, Scale 0-0.25-0, Stylus Length 20.29mm, Bezel Diameter 50mm
SKU:Code: Verdict-T27M
Sale
Sold out
Regular price
£97.20
Save: 20%
Sold out
Sale price
£97.20
Regular price
£121.50
Excl. VAT
Worm mechanism. Clamping facilities by means of dovetail or end spigot. Dial rotates for zero setting. Automatic reversal movement. Jewelled mechanism. Stylus swivels through an arc of 180 degrees. Unidirectional hand travel. Lever pivots are mounted in long life ball bearings. Imperial instruments fitted with 1/4 inch diameter spigot (metric 4mm)
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.5mm
- display type Non-Digital
- graduations 0.01mm
- bezel dia 50mm
- measuring units Metric
- scale 0-0.25-0
- contact point thread 10BA
description
description
This popular instrument features a dial face that is inclined to the workpiece surface to ensure excellent reading visibility without parallax error. The T27 is part of our Rapid range and incorporates a rear swivel spigot enabling use for centering without additional attachments. It also includes a precision worm mechanism as part of the inner workings to translate the vertical movement to rotational - without sliding friction or internal wear. Features dovetail clamping slides on both the top and the bottom of the casing.
