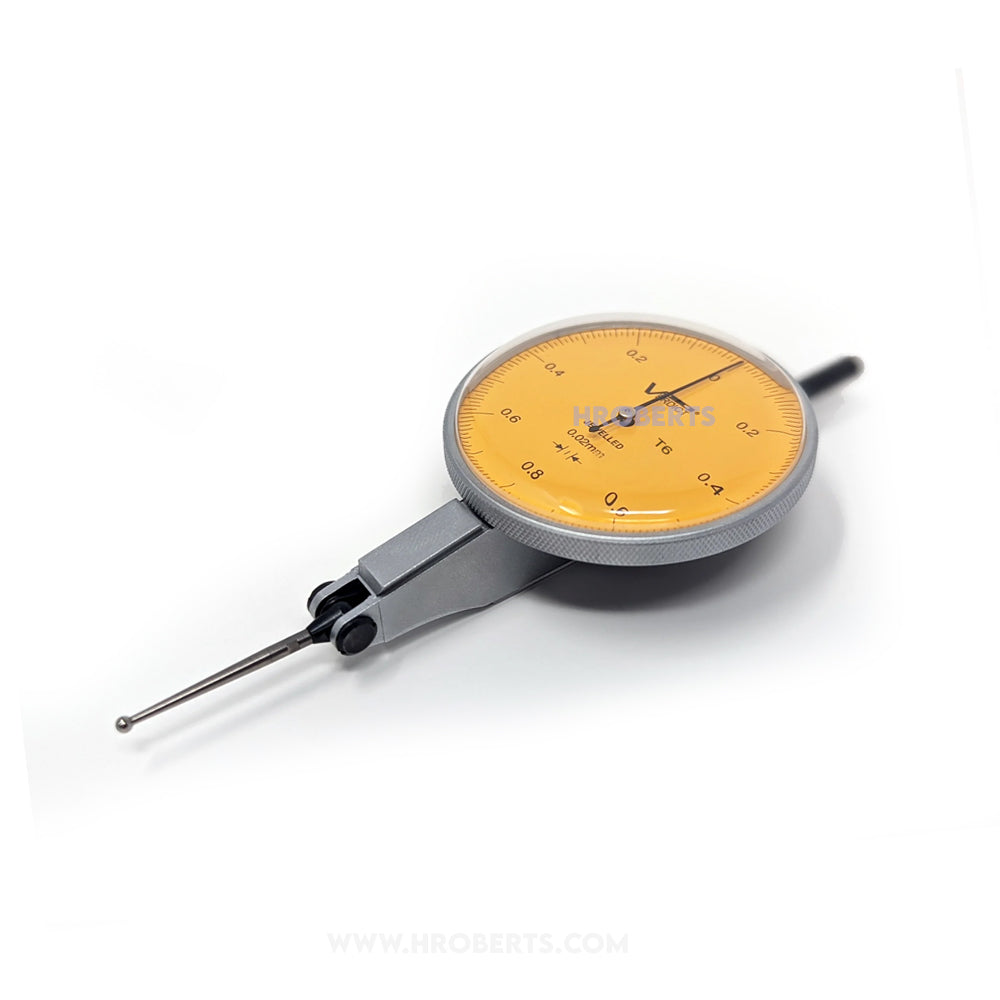

05-1006 T6 Metric Lever Dial Indicator Horizontal Type, Graduation 0.01mm, Range 1.6mm, Scale 0-0.8-0, Stylus Length 27.4mm, Bezel Diameter 50mm

Code: Verdict-T6M

Sale Sold out £94.24
Save: 20% Sold out £94.24 £117.80
Excl. VAT
Worm mechanism. Clamping facilities by means of dovetail or end spigot. Dial rotates for zero setting. Automatic reversal movement. Jewelled mechanism. Stylus swivels through an arc of 180 degrees.Unidirectional hand travel.Lever pivots are mounted in long-life ball bearings. Imperial instruments fitted with 4mm diameter spigot.Swivel spigot standard on all models

Request a Quote

Add to Compare

  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.
View full details
Specification
  • type Horizontal Type
  • range 1.6mm
  • display type Non-Digital
  • graduations 0.01mm
  • bezel dia 50mm
  • measuring units Metric
  • scale 0-0.8-0
  • contact point thread 10BA
description

The T6 Metric Dial Test Indicator (DTI) has a dedicated switch lever for manually reversing the direction of movement depending on user requirements. Along with user control of the movement direction, these dependable and robust models feature lever pivots that are mounted in ball bearings and provide solid kinetics in all uses. The indicator body is machined to accept dovetail attachments and it also features a 4mm diameter top spigot that accepts rods up to 6.5mm. The T6 is specifically designed to accommodate a longer stylus to overcome practical measuring problems and is therefore supplied with a round stylus point
