Verdict

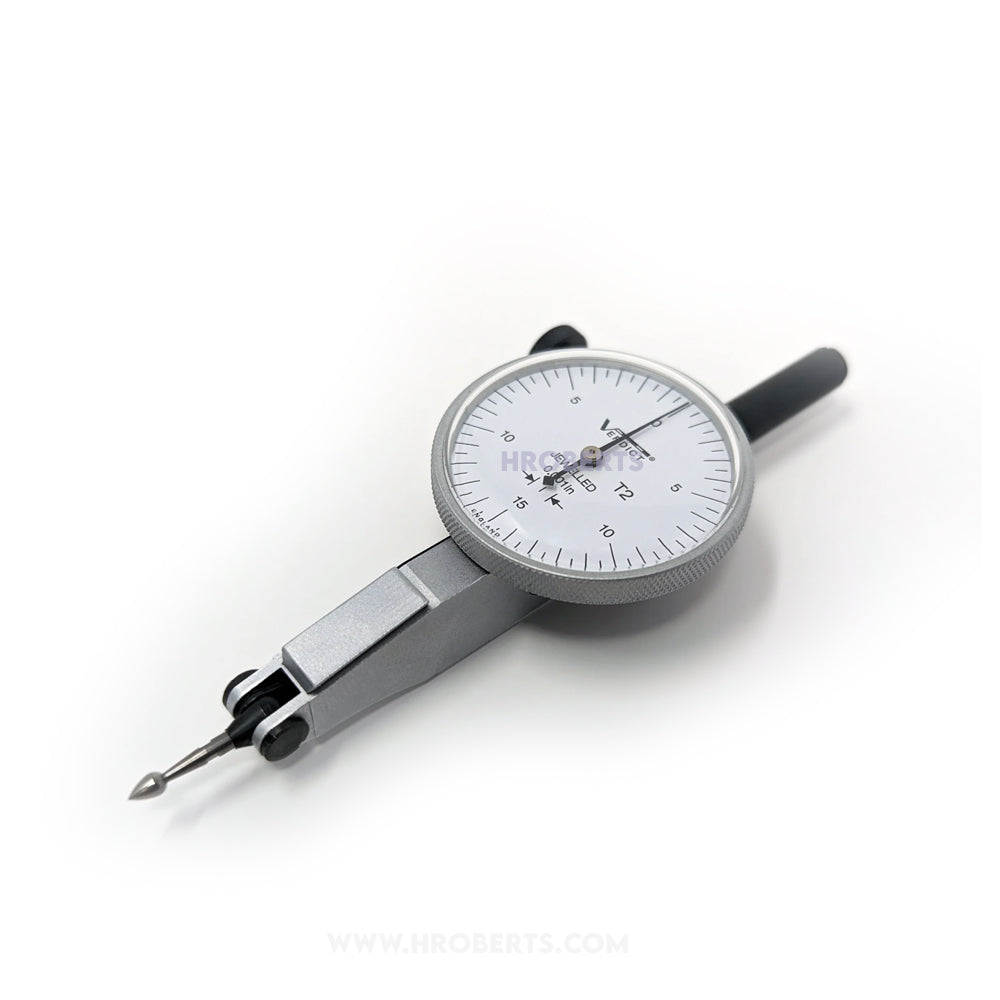

05-2002 T2 Imperial Lever Dial Indicator Horizontal Type, Graduation 0.0005", Range 0.030", Scale 0-15-0, Stylus Length 0.514", Bezel Diameter 1.3/8"
SKU:Code: Verdict-T2I
Sale
Sold out
Regular price
£90.00
Save: 20%
Sold out
Sale price
£90.00
Regular price
£112.50
Excl. VAT
Worm mechanism. Clamping facilities by means of dovetail or end spigot. Dial rotates for zero setting. Manual reversal movement. Jewelled mechanism. Stylus swivels through an arc of 180 degrees. Unidirectional hand travel. Lever pivots are mounted in long-life ball bearings. Imperial instruments fitted with 1/4 inch diameter spigot. Swivel spigot standard on all models
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Horizontal Type
- range 0.030"
- display type Non-Digital
- graduations 0.0005"
- bezel dia 1.3/8"
- measuring units Imperial
- scale 0-15-0
- contact point thread 10BA
description
description
The T2 Imperial Dial Test Indicator (DTI) has a dedicated switch lever for manually reversing the direction of movement depending on user requirements. Along with user control of the movement direction, these dependable and robust models feature lever pivots that are mounted in ball bearings and provide solid kinetics in all uses. The indicator body is machined to accept dovetail attachments and it also features a 1/4 inch diameter top spigot that accepts rods up to 0.256 inches.
