Mitutoyo 570-413 Absolute Digimatic Digital Height Gauge, Range 0-450mm / 0-18", Resolution 0.01mm / 0.0005"
SKU:Code: 570-413
Sale
Sold out
Regular price
£795.00
Save: 25%
Sold out
Sale price
£795.00
Regular price
£1,060.00
Excl. VAT

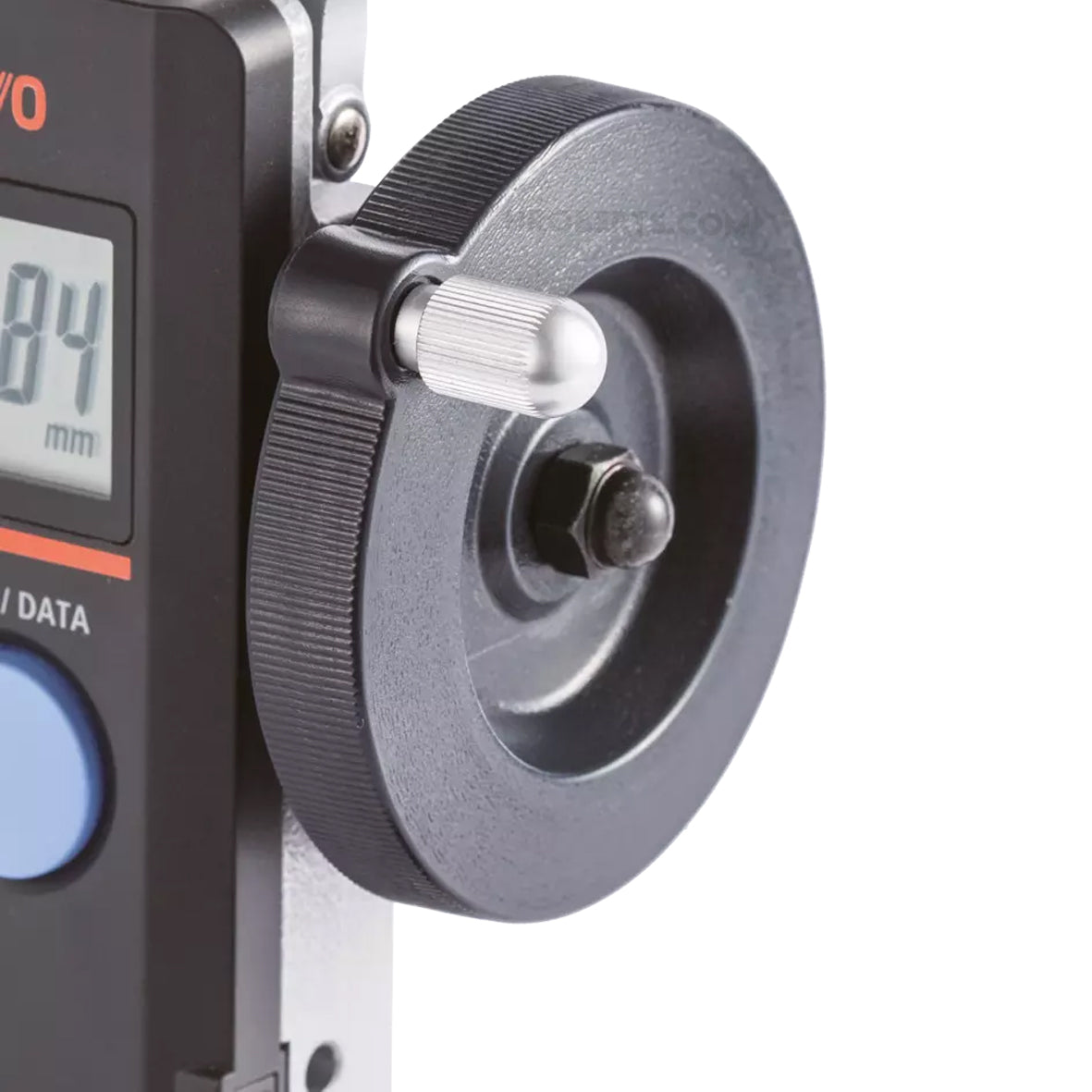

Allows smooth elevation by the slider adjustment wheel, which is the same type used on the well established double-column height gauge.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Scribing
- range 0-450mm / 0-18"
- display type Digital
- resolution 0.01mm / 0.0005"
- data output Yes
- measuring units Metric / Imperial
- abs measure system Yes
- origin point setting Yes
- data hold Yes
- max permissible error EMPE ±0.05mm (±0.0020")
- brand Mitutoyo
description
description

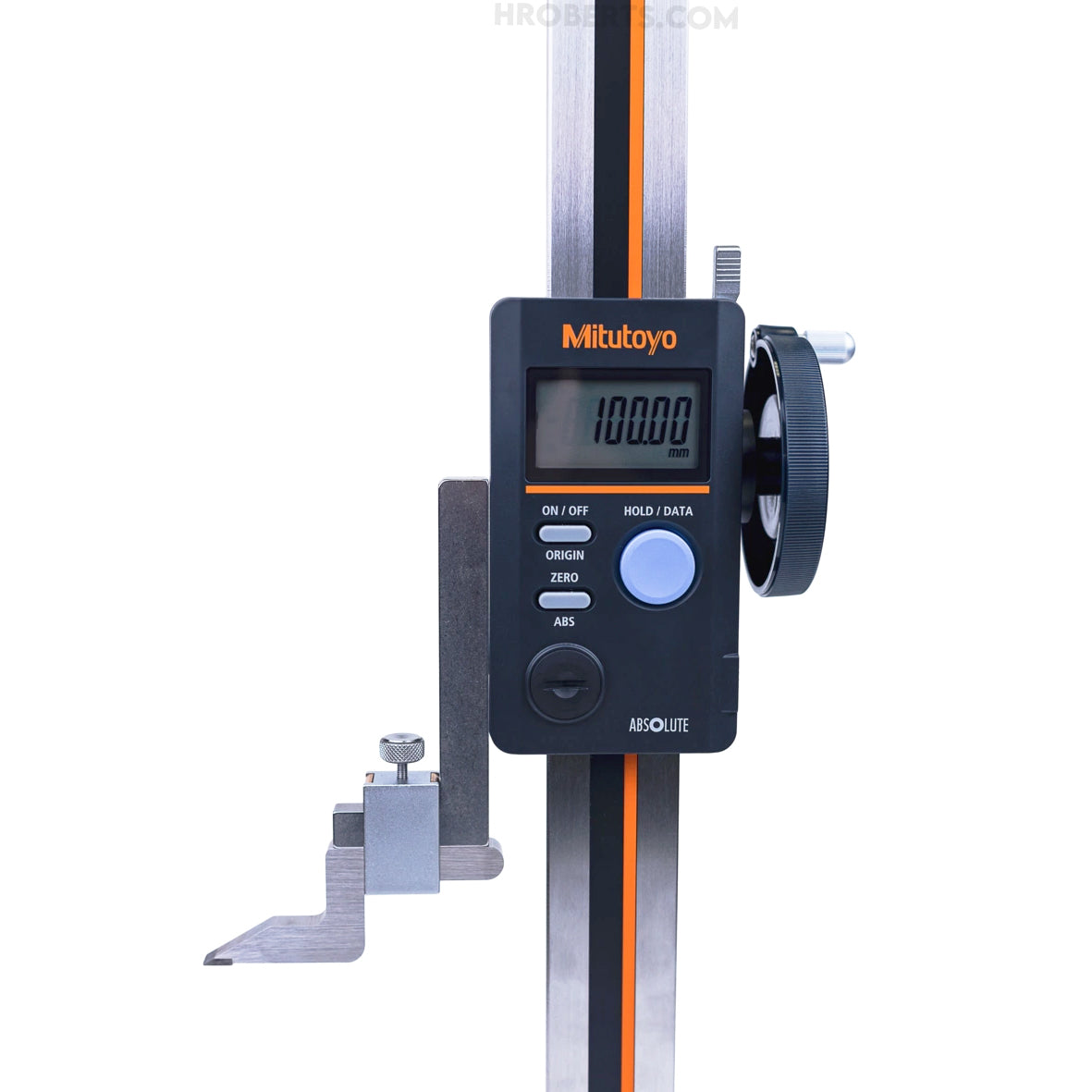

Large slider-clamp lever ensures positive and accurate clamping action. The 12 mm high character display (20% bigger than the previous model) – makes it easier to read the measured values. Due to the built-in ABSOLUTE scale function, origin setting is not required each time power is turned ON. Allows integration into statistical process control and measurement systems. The 3-button operation makes it consistent with other Mitutoyo devices. And when used together with U-WAVE, it makes data management operations easy.
